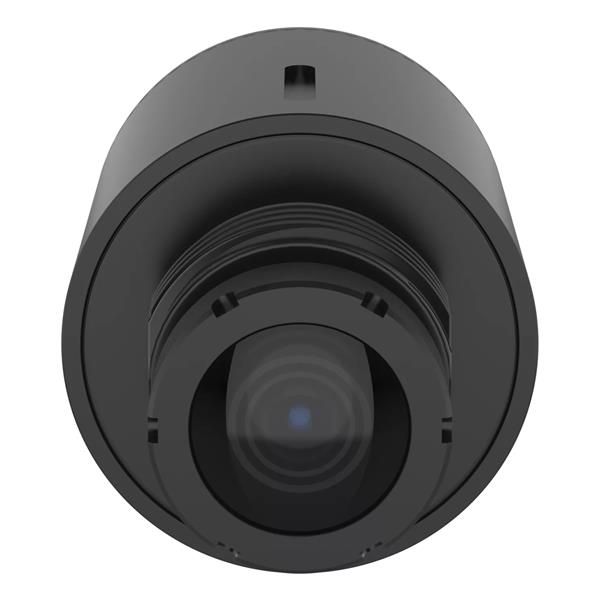

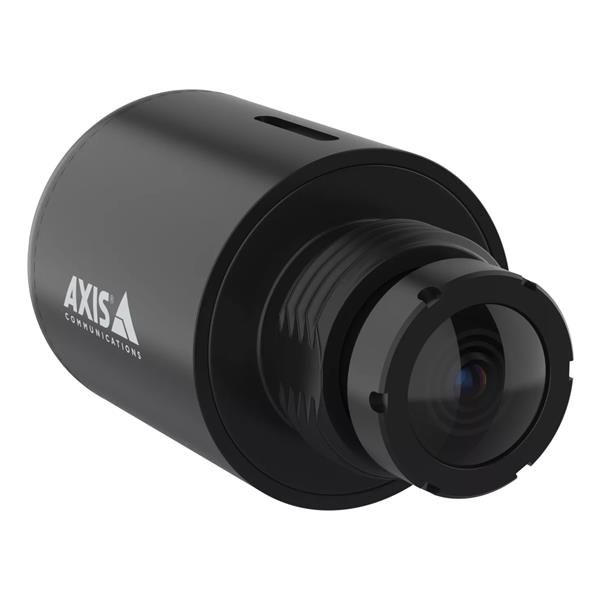

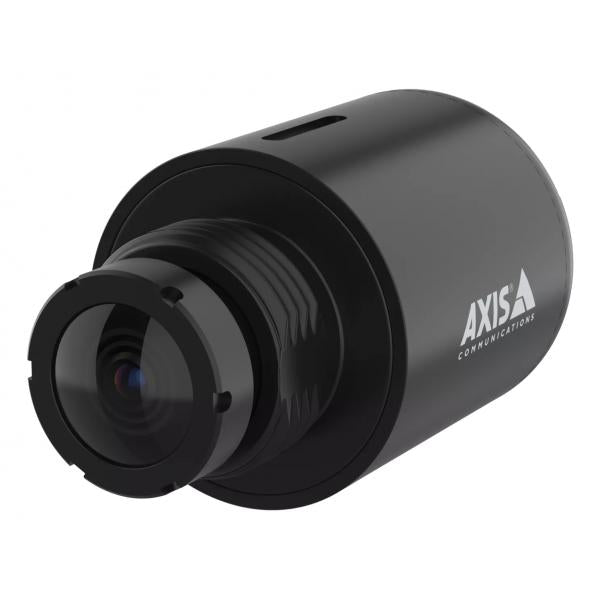

AXIS F2107-RE STANDARD SENSOR -Axis733102108588602868-001

Axis F2107-RE SensoreAXIS F2107-RE Standard SensorIdeal for both indoor and outdoor installation, this sensor unit offers high-quality 5 MP video, 110° field of view, and good performance in low-light conditions. Rugged SMA connectors ensure a tight connection. High image qualityThis standard sensor delivers high-quality 5 MP video even in challenging and low-light conditions. With a 110° horizontal field of view, it’s perfect when you need wide -area coverage with great details in both indoor and outdoor environments. When used with AXIS F91 main units, it supports Forensic WDR to ensure clarity when there’s both dark and light areas in the scene. Plus, Lightfinder captures sharp, color images in low light. Flexible and discreetWith a small cylinder-shaped form factor, AXIS F2107-RE offers discreet installation. Based on a divided network camera concept, it can be placed away from the main unit. And thanks to its small size, it’s ideal for installation in tight spaces, for instance, in ATMs and industrial machines. Designed to work with AXIS F91 main units, it can be combined with up to three other sensor units for maximum flexibility. It’s compatible with the same accessories as other AXIS F21 sensors to simplify procurement, installation, and upgrade. Furthermore, when maintenance or upgrade is needed, the cable can be left in place. So, you can quickly remove the sensor unit and update or replace it as needed. Ruggedized standard sensorThis IP66-/IP67-/IP6K9K-rated device can withstand temperatures as low as -40 °C and as high as 60°C (-40 °F to 140 °F). And, thanks to its rugged design, this standard sensor unit can withstand shock and vibration making it ideal for installation, for instance, in vehicles and industrial machines. It features SMA connectors to ensure a tight connection between the sensor and the cable. Plus, the cable itself features a SMA-FAKRA connector to further ensure a ruggedized installation.

Angolo di visualizzazione (orizzontale)	110°
Intervallo temperatura di funzionamento	-40 - 60 °C
Materiale della scocca	Alluminio
Umidità	5 - 95%
Tipo sensore	CMOS
Non contiene	BFR, CFR, PVC
Consumi	1 W
Lunghezza focale	2.8 mm
Peso	54 g
Numero F (apertura relativa)	2
Wide Dynamic Range (WDR)	Sì
Intervallo di temperatura	-40 - 65 °C
Angolo di visualizzazione (verticale)	80°
Colore del prodotto	Nero
Certificazione	CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Japan: VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN 62368-1 ed. 3, IEC/EN 60950-22, UN ECE R118, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Japan: VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN 62368-1 ed. 3, IEC/EN 60950-22, UN ECE R118, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC TR 60721-4-5 Class 5M3 (Vibration Shock), IEC/EN 60529 IP66/IP67, IEC/EN 61373 Category 1 Class B, ISO 21207 (Method B), ISO 20653 IP6K9K, NEMA 250 Type 4X
Interfaccia di montaggio dell'obiettivo	M12
Dimensione del sensore di immagine	1/2.78"
Consumo energetico (max)	1,8 W
Risoluzione	2592 x 1944 Pixel
Posizionamento supportato	Universale
Compatibilità marca	Axis
Larghezza	30 mm
Range di umidità di funzionamento	10 - 100%
Quantità per pacco	1 pz
Tipo	Sensore
numero di connettori	1
Altezza	30 mm
Profondità	58 mm
Codice di protezione internazionale (IP)	IP66, IP67, IP6K9K
